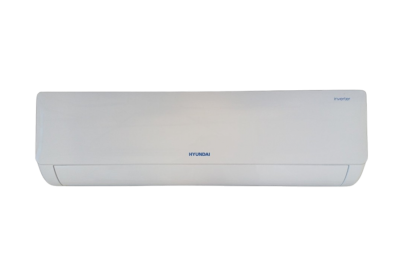

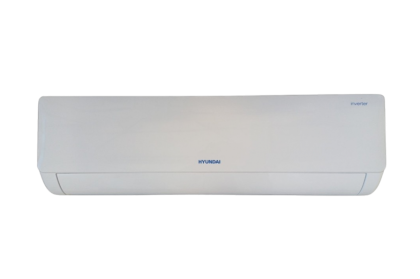

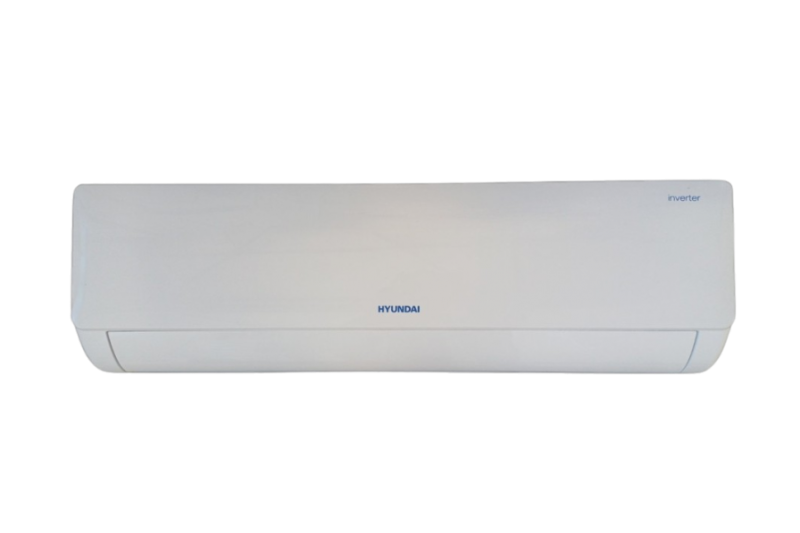

Климатик HYUNDAI HYUB-24HRFN8-QRD0GW

Model HYUB-24HRFN8 -QRD0GW
Power supply Ph-V-Hz 220-240V,1Ph,50Hz
Rated Cooling Capacity Btu/h 24000（7100~27000)
Cooling Power input W 2600（420~3150)
Cooling  Current A 11.5（1.8~13.8)
Rated Heating Capacity Btu/h 25000（5500~27000)
Heating Power input W 2400（300~2750)
Heating Current A 11（1.3~12.2)
Seasonal Cooling Pdesignc kW 7.0
SEER W/W 6.1
Energy Efficiency Class   A++
Heating(Average) Pdesignh kW 4.8
SCOP W/W 4.0
Energy Efficiency Class   A+
Tbiv ℃ -7
Tol ℃ -15
Moisture Removal             L/h /
Max. input consumption         W 3500
Max. current                A 15.5
Starting current                A 0
Compressor Model   KTM240D43UKT
Type   Twin-ROTARY
Brand   GMCC
Capacity Btu/h 7600
Input W 2045
Rated current(RLA) A 9.3
Locked rotor Amp(LRA) A /
Thermal protector   /
Thermal protector position   NA
Capacitor uF /
Refrigerant oil/oil charge ml ESTER OIL VG74 620
Indoor fan motor Model   ZKFP-58-8-1-5
Output W 58.0
Capacitor uF /
Speed(Hi/Mi/Lo) r/min 1130 / 900 / 800
Indoor coil Number of rows   2.0
Tube pitch(a)x row pitch(b) mm 21x13.37
Fin spacing   mm 1.3
Fin type (code)   Hydrophilic Aluminum
Tube outside dia.and type mm Φ7,Inner groove tube
Coil length x height x width mm 780x210x26.74+780x105x26.74
Number of circuits   4
Indoor air flow (Hi/Mi/Lo) m3/h 980/817/662
Indoor sound pressure level  (Hi/Mi/Lo/Si) dB(A) 45/40.5/36/29.5
Indoor sound power level (Hi) dB(A) 59
Indoor unit Dimension(W*D*H) mm 1040x220x327
Packing   (W*D*H) mm 1120x405x315
Net/Gross weight Kg 12.3/15.8
Outdoor fan motor Model   ZKFN-80-8-3
Output W /
Capacitor uF /
Speed r/min 830/700/550
Outdoor coil Number of rows   1.6
Tube pitch(a)x row pitch(b) mm 21x22
Fin spacing     mm 1.3
Fin type (code)   Hydrophilic Aluminum
Tube outside dia.and type mm Ф7,Inner groove tube
Coil length x height x width mm 900*609*22+540*609*22
Number of circuits   5
Outdoor air flow m3/h 3500
Outdoor sound pressure level dB(A) 59
Outdoor sound power level dB(A) 67
Outdoor unit Dimension(W*D*H) mm 890x342x673
Packing  (W*D*H) mm 995x398x740
Net/Gross weight Kg 42.9/45.9
Refrigerant Type   R32
GWP   675
Charged quantity Kg 1.42
Design pressure MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side mm(inch) 9.52mm(3/8in)/15.9mm(5/8in)
Max. refrigerant pipe length m 50
Max. difference in level m 25
Connection wiring   2.5x5//
Plug type   //no-plug
Thermostat type   Remote Control
Operation temperature Indoor(cooling/ heating) ℃ 17～32/0～30
Outdoor(cooling/heating) ℃ -15～50/-20～24
Application area minimum-maximum m2 32～47
Qty’per 20’ /40’ /40'HQ   66/137/156
