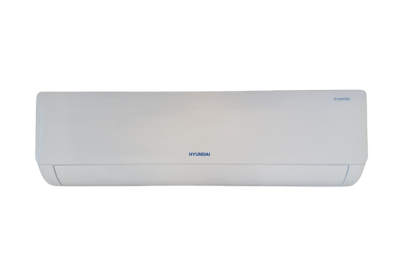

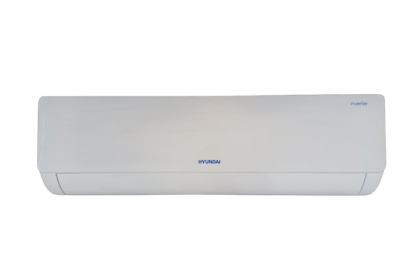

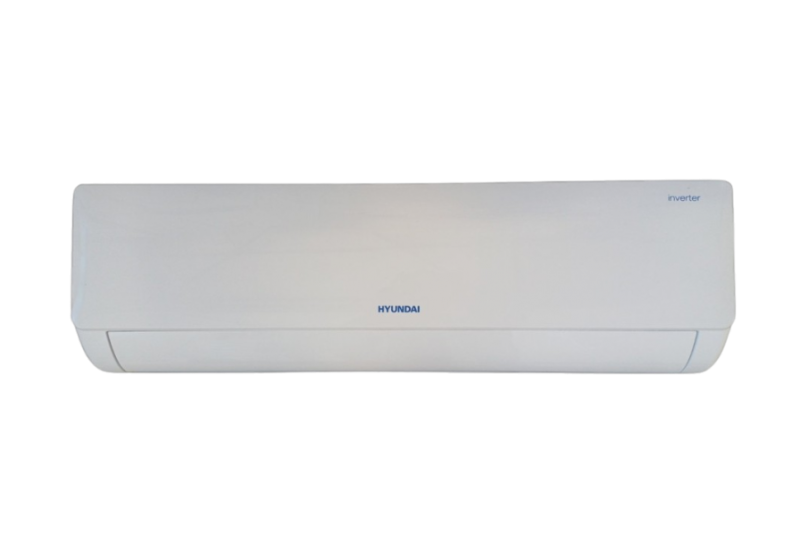

Климатик HYUNDAI HYUB-18HRFN8-QRD0GW

Model HYU-18HRFN8-QRD0GW
Power supply Ph-V-Hz 220-240V,1Ph,50Hz
Rated Cooling Capacity    Btu/h 18000 (6200~21000)
Cooling Power input W 1550(140~2300)
Cooling  Current A 6.7(0.6~10)
Rated Heating Capacity Btu/h 19000 (4400~23000)
Heating Power input W 1570（220~2350)
Heating Current A 6.8(0.95~10.2)
Seasonal Cooling Pdesignc kW 5.2
SEER W/W 7.4
Energy Efficiency Class   A++
Heating(Average) Pdesignh kW 4.1
SCOP W/W 4.0
Energy Efficiency Class   A+
Tbiv ℃ -7
Tol ℃ -15
Moisture Removal L/h /
Max. input consumption W 2500
Max. current A 13
Starting current A 0
Compressor Model   KSN140D21UFZ
Type   ROTARY
Brand   GMCC
Capacity Btu/h 4385
Input W 1140
Rated current(RLA) A 7.50
Locked rotor Amp(LRA) A /
Thermal protector   /
Thermal protector position   /
Capacitor uF /
Refrigerant oil/oil charge ml VG74/440
Indoor fan motor Model   ZKFP-30-8-3
Output W 36.0
Capacitor uF /
Speed(Hi/Mi/Lo) r/min 1130 / 900 / 800
Indoor coil Number of rows   2.0
Tube pitch(a)x row pitch(b) mm 21x13.37
Fin spacing    mm 1.2
Fin type (code)   Hydrophilic Aluminum
Tube outside dia.and type mm Φ7,Inner groove tube
Coil length x height x width mm 750x189x26.74+750x105x26.74
Number of circuits   3
Indoor air flow (Hi/Mi/Lo) m3/h 840/680/540
Indoor sound pressure level  (Hi/Mi/Lo/Si) dB(A) 42.5/36/26/20
Indoor sound power level (Hi) dB(A) 56
Indoor unit Dimension(W*D*H) mm 957x213x302
Packing   (W*D*H) mm 1035x295x385
Net/Gross weight Kg 10/13
Outdoor fan motor Model   ZKFN-34-10-1-3
Output W /
Capacitor uF /
Speed r/min 740/650
Outdoor coil Number of rows   2.0
Tube pitch(a)x row pitch(b) mm 21x22
Fin spacing    mm 1.3
Fin type (code)   Hydrophilic Aluminum
Tube outside dia.and type mm Ф7,Inner groove tube
Coil length x height x width mm 860*504*44
Number of circuits   4
Outdoor air flow m3/h 2100
Outdoor sound pressure level dB(A) 56
Outdoor sound power level dB(A) 63
Outdoor unit Dimension(W*D*H) mm 805x330x554
Packing  (W*D*H) mm 915x370x615
Net/Gross weight Kg 32.7/35.4
Refrigerant Type   R32
GWP   675
Charged quantity Kg 1.08
Design pressure MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/12.7mm(1/2in)
Max. refrigerant pipe length m 30
Max. difference in level m 20
Connection wiring   1.5x5//
Plug type   //no-plug
Thermostat type   Remote Control
Operation temperature Indoor(cooling/ heating) ℃ 17～32/0～30
Outdoor(cooling/heating) ℃ -15～50/-20～24
Application area minimum-maximum m2 24～35
Qty’per 20’ /40’ /40'HQ   84/180/208
