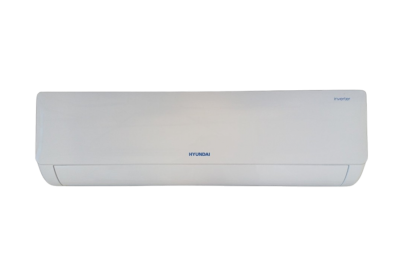

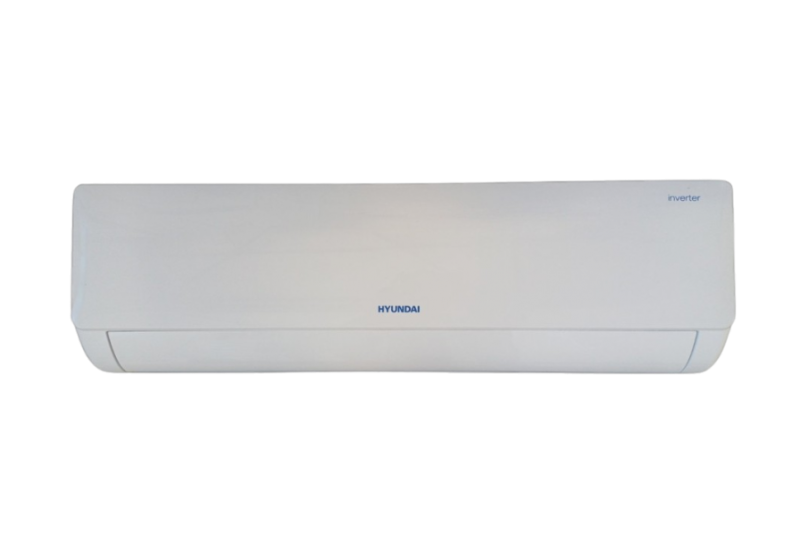

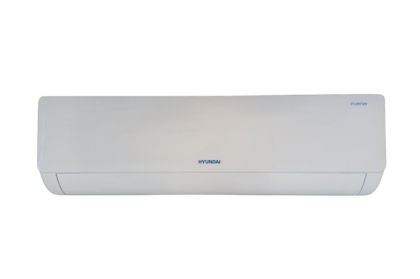

Климатик HYUNDAI HYUB-12HRFN8-QRD1GW

Model HYUB-12HRFN8 -QRD1GW
Power supply Ph-V-Hz 220-240V,1Ph,50Hz
Rated Cooling Capacity    Btu/h 12000（3800~13400)
Cooling Power input W 1320(83~1600)
Cooling  Current A 5.8（0.8~7.3)
Rated Heating Capacity         Btu/h 13000（3700~14200)
Heating Power input W 1090（167~1400)
Heating Current A 5.3(1.4~6.4)
Seasonal Cooling Pdesignc kW 3.5
SEER W/W 6.5
Energy Efficiency Class   A++
Heating(Average) Pdesignh kW 2.8
SCOP W/W 4.1
Energy Efficiency Class   A+
Tbiv ℃ -7
Tol ℃ -15
Moisture Removal L/h /
Max. input consumption W 2150
Max. current A 10
Starting current A /
Compressor Model   KSK103D32UEZ31
Type   ROTARY
Brand   GMCC
Capacity Btu/h 3245
Input W 850
Rated current(RLA) A 5.7
Locked rotor Amp(LRA) A /
Thermal protector   /
Thermal protector position   /
Capacitor uF /
Refrigerant oil/oil charge ml ESTER OIL VG74 280
Indoor fan motor Model   ZKFP-30-8-357L
Output W 35.0
Capacitor uF 1.2
Speed(Hi/Mi/Lo) r/min 1130/950/750
Indoor coil Number of rows   2
Tube pitch(a)x row pitch(b) mm 19.5x11.6
Fin spacing    mm 1.2
Fin type (code)   Hydrophilic Aluminum
Tube outside dia.and type mm Ф5,Inner groove tube
Coil length x height x width mm 595x78x23.2+595x117x23.2+595x78x23.2
Number of circuits   4
Indoor air flow (Hi/Mi/Lo) m3/h 530/430/310
Indoor sound pressure level  (Hi/Mi/Lo/Si) dB(A) 39.5/35.5/25/21.5
Indoor sound power level (Hi) dB(A) 54.0
Indoor unit Dimension(W*D*H) mm 805x194x285
Packing   (W*D*H) mm 870x270x365
Net/Gross weight Kg 7.3/9.5
Outdoor fan motor Model   ZKFN-25-10-5L
Output W /
Capacitor uF /
Speed r/min 780/600
Outdoor coil Number of rows   1
Tube pitch(a)x row pitch(b) mm 18x17.3
Fin spacing mm 1.3
Fin type (code)   Hydrophilic Aluminum
Tube outside dia.and type mm Φ7,Inner groove tube
Coil length x height x width mm 745x468x17.3
Number of circuits   3
Outdoor air flow m3/h 1750
Outdoor sound pressure level dB(A) 55.0
Outdoor sound power level dB(A) 64.0
Outdoor unit Dimension(W*D*H) mm 720x270x495
Packing  (W*D*H) mm 835x300x540
Net/Gross weight Kg 21/22.8
Refrigerant Type   R32
GWP   675
Charged quantity Kg 0.52
Design pressure MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/9.52mm(3/8in)
Max. refrigerant pipe length m 25
Max. difference in level m 10
Connection wiring   1.5x5//
Plug type   //no-plug
Thermostat type   Remote Control
Operation temperature Indoor(cooling/ heating) ℃ 17～32/0～30
Outdoor(cooling/heating) ℃ -15～50/-20～24
Application area minimum-maximum m2 16～23
Qty’per 20’ /40’ /40'HQ   132/274/305
