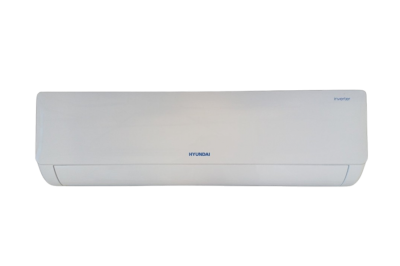

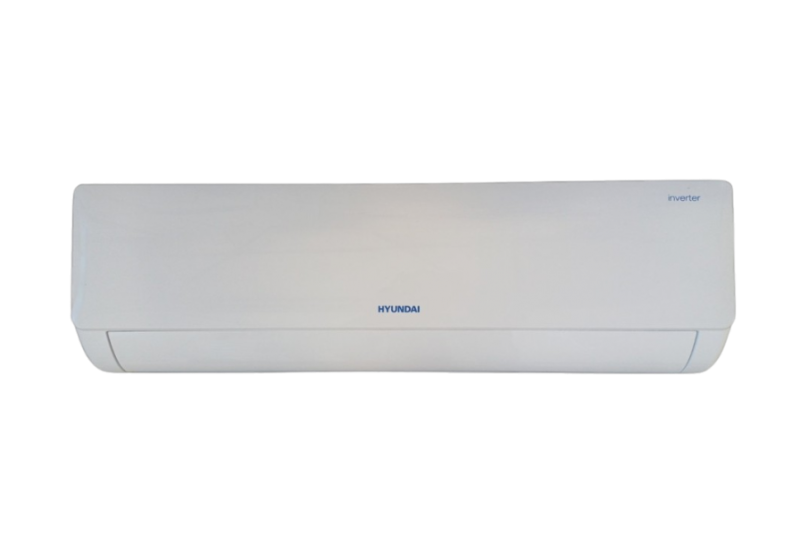

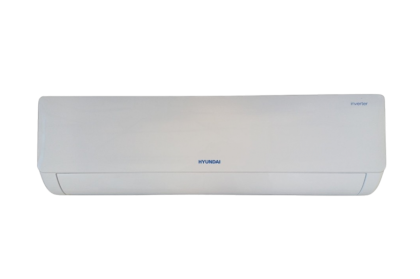

Климатик HYUNDAI HYUB-09HRFN8-QRD1GW

Model HYUB-09HRFN8 -QRD1GW
Power supply Ph-V-Hz 220-240V,1Ph,50Hz
Rated Cooling Capacity  Btu/h 9000（3100~11600)
Cooling Power input W 800 (100~1240)
Cooling  Current A 3.48（0.4~5.4)
Rated Heating Capacity Btu/h 10000（2800~11500)
Heating Power input W 930（120~1200)
Heating Current A 4.05（0.5~5.2)
Seasonal Cooling Pdesignc kW 2.6
SEER W/W 7.0
Energy Efficiency Class   A++
Heating(Average) Pdesignh kW 2.3
SCOP W/W 4.1
Energy Efficiency Class   A+
Tbiv ℃ -7
Tol ℃ -15
Moisture Removal L/h /
Max. input consumption W 2150
Max. current A 10
Starting current A /
Compressor Model   KSK103D32UEZ31
Type   ROTARY
Brand   GMCC
Capacity Btu/h 3245
Input W 850
Rated current(RLA) A 5.70
Locked rotor Amp(LRA) A /
Thermal protector   /
Thermal protector position   /
Capacitor uF /
Refrigerant oil/oil charge ml ESTER OIL VG74 / 280
Indoor fan motor Model   ZKFP-30-8-357L
Output W 35
Capacitor uF 1.2
Speed(Hi/Mi/Lo) r/min 1100 / 900 / 750
Indoor coil Number of rows   2.0
Tube pitch(a)x row pitch(b) mm 19.5x11.6
Fin spacing   mm 1.2
Fin type (code)   Hydrophilic Aluminum
Tube outside dia.and type mm Ф5,Inner groove tube
Coil length x height x width mm 510x78x23.2+510x97.5x23.2+510x78x23.2
Number of circuits   3
Indoor air flow (Hi/Mi/Lo) m3/h 435/333/259
Indoor sound pressure level  (Hi/Mi/Lo/Si) dB(A) 37/32/25/21.5
Indoor sound power level (Hi) dB(A) 50
Indoor unit Dimension(W*D*H) mm 715x194x285
Packing   (W*D*H) mm 780x270x365
Net/Gross weight Kg 6.7/8.8
Outdoor fan motor Model   ZKFN-25-10-5L
Output W /
Capacitor uF /
Speed r/min 780/600
Outdoor coil Number of rows   1
Tube pitch(a)x row pitch(b) mm 18x17.3
Fin spacing mm 1.3
Fin type (code)   Hydrophilic Aluminum
Tube outside dia.and type mm Φ7,Inner groove tube
Coil length x height x width mm 745x468x17.3
Number of circuits   3
Outdoor air flow m3/h 1750
Outdoor sound pressure level dB(A) 55
Outdoor sound power level dB(A) 59
Outdoor unit Dimension(W*D*H) mm 720x270x495
Packing  (W*D*H) mm 835x300x540
Net/Gross weight Kg 21/22.8
Refrigerant Type   R32
GWP   675
Charged quantity Kg 0.47
Design pressure MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/9.52mm(3/8in)
Max. refrigerant pipe length m 25
Max. difference in level m 10
Connection wiring   1.5x5//
Plug type   //no-plug
Thermostat type   Remote Control
Operation temperature Indoor(cooling/ heating) ℃ 17～32/0～30
Outdoor(cooling/heating) ℃ -15～50/-20～24
Application area minimum-maximum m2 12～18
Qty’per 20’ /40’ /40'HQ   138/284/312
