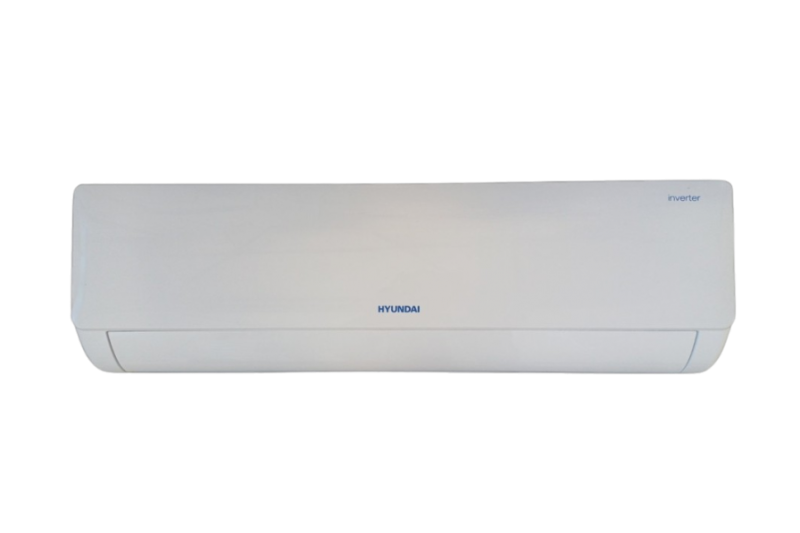

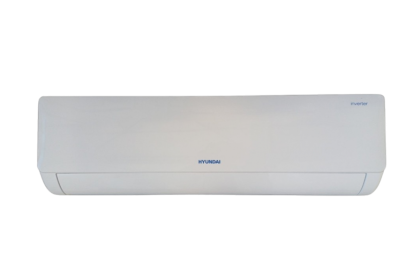

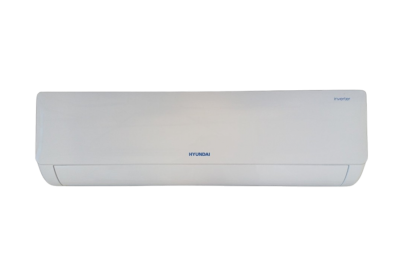

Климатик HYUNDAI HYUBG Pro-24HRFN8-QRD0GW

Model HYUBGPro-24HRFN8 -QRD0GW
Power supply V-Ph-Hz 220-240V,1Ph,50Hz
Cooling (Standard conditions) Capacity                      Btu/h 23884(7600~30000)
Capacity                      kW 7.0 (2.2~8.8)
Input            W 2120(420~3450)
Current    A 9.21(1.8~15)
EER W/W 3.30
Heating (Standard conditions) Capacity         Btu/h 24908(5300~32000)
Capacity                      kW 7.3 (1.6~9.4)
Input            W 1970(300~3150)
Current    A 8.56(1.3~13.7)
COP W/W 3.71
Seasonal Cooling Pdesignc kW 7.0
SEER W/W 7.9
Energy Efficiency Class   A++
Heating(Average ) Pdesignh kW 4.9
SCOP W/W 4.6
Energy Efficiency Class   A++
Tbiv ℃ -7
Heating(Warmer ) Pdesignh kW 5.0
SCOP W/W 5,1
Energy Efficiency Class   A+++
Tbiv ℃ 2
Tol ℃ -15
Rated Power Input        W 3800
Rated Current                A 19
Compressor Model    KTM240D46UKT2
Type    ROTARY
Brand    GMCC
Capacity      W 7600
Input           W 2045
Rated current(RLA)  A 9.30
Refrigerant oil/oil charge   ml ESTER OIL VG74 / 620
Indoor fan motor Model    ZKFP-58-8-26L
Speed(Hi/Mi/Lo) r/min 1050/910/840
Indoor coil a.Number of rows   2
b.Tube pitch(a)x row pitch(b)   mm 21x13.37
c.Fin spacing                 mm 1.3
d.Fin type (code)   Hydrophilic aluminum
e.Tube outside dia.and type  mm Φ7,Inner groove tube
f.Coil length x height x width   mm 820x231x26.74+820x126x26.74
g.Number of circuits   4
Indoor air flow (Turbo/Hi/Mi/Lo/Si) m3/h 1150/1090/790/635/445
Indoor noise level (Hi/Mi/Lo/Si) dB(A) 46/39.5/32.5/21.5
Indoor sound power level dB(A) 60
Indoor unit Dimension(W*D*H) mm 1055x231x330
Packing   (W*D*H) mm 1130x405x315
Net/Gross weight   kg 13/16.4
Outdoor fan motor Model    ZKFN-80-10-1L
Speed         r/min 830/550
Outdoor coil a.Number of rows   2
b.Tube pitch(a)x row pitch(b)   mm 18x17.3
c.Fin spacing                 mm 1.3
d.Fin type (code)   Hydrophilic aluminum
e.Tube outside dia.and type  mm Φ5,Inner groove tube
f.Coil length x height x width   mm 900*612*17.3+870*612*17.3
g.Number of circuits   8
Outdoor air flow             m3/h 3500
Outdoor sound pressure level dB(A) 60
Outdoor sound power level         dB(A) 68
Outdoor unit Dimension(W*D*H) mm 890x342x673
Packing  (W*D*H) mm 995x398x740
Net/Gross weight   kg 41.0/44.0
Refrigerant           Type    R32
GWP   675
Charged quantity kg 1.08
Design pressure              MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side   mm(inch) 6.35mm(1/4in)/12.7mm(1/2in)
Max. refrigerant pipe length    m 50
Max. difference in level        m 25
Connection wiring       2.5x5//
Plug type   //no-plug
Thermostat type   Remote Control
Room  temperature Indoor(cooling/ heating) ℃ 16～32/0～30
Outdoor(cooling/heating) ℃ -15～50/-25～24
Application area   (Cooling Standard) m2 32～47
Qty’per 20’ /40’ /40'HQ        64/135/154
