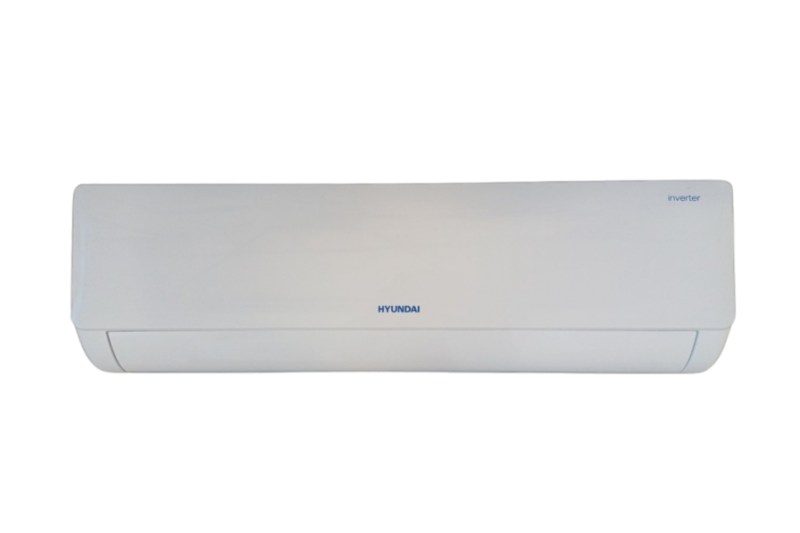

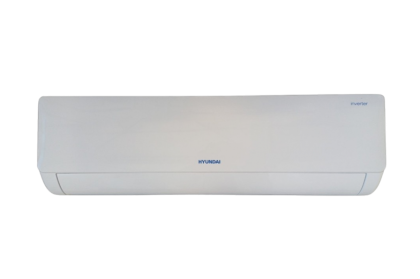

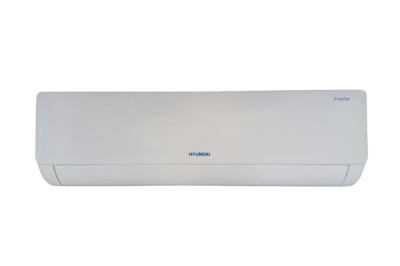

Климатик HYUNDAI HYUBG Pro-18HRFN8-QRD0GW

Model HYUBGPro-18HRFN8 -QRD0GW
Power supply V-Ph-Hz 220-240V,1Ph,50Hz
Cooling (Standard conditions) Capacity                      Btu/h 17060(6800~20900)
Capacity                      kW 5.0 (2.0~6.1)
Input            W 1390(160~1787)
Current    A 6.04(0.72~7.90)
EER W/W 3.60
Heating (Standard conditions) Capacity         Btu/h 18425(4600~23100)
Capacity                      kW 5.4 (1.4~6.8)
Input            W 1440(230~1750)
Current    A 6.26(1.1~7.60)
COP W/W 3.75
Seasonal Cooling Pdesignc kW 5.0
SEER W/W 8.5
Energy Efficiency Class   A+++
Heating(Average ) Pdesignh kW 4.0
SCOP W/W 4.6
Energy Efficiency Class   A++
Tbiv ℃ -7
Heating(Warmer ) Pdesignh kW 4.4
SCOP W/W 5.7
Energy Efficiency Class   A+++
Tbiv ℃ 2
Tol ℃ -15
Rated Power Input        W 2800
Rated Current                A 13.5
Compressor Model    KSN140D58UFZ
Type    ROTARY
Brand    GMCC
Capacity      W 4315
Input           W 1090
Rated current(RLA)  A 7.15
Refrigerant oil/oil charge   ml ESTER OIL VG74  440
Indoor fan motor Model    ZKFP-35-10-188L
Speed(Hi/Mi/Lo) r/min 1000/868/802
Indoor coil a.Number of rows   2
b.Tube pitch(a)x row pitch(b)   mm 19.5x11.6
c.Fin spacing                 mm 1.3
d.Fin type (code)   Hydrophilic aluminum
e.Tube outside dia.and type  mm Φ5,Inner groove tube
f.Coil length x height x width   mm 770x195x23.2+770x117x23.2
g.Number of circuits   4
Indoor air flow (Turbo/Hi/Mi/Lo/Si) m3/h 950/800/600/470/340
Indoor noise level (Hi/Mi/Lo/Si) dB(A) 43/36/28/21.5
Indoor sound power level dB(A) 58
Indoor unit Dimension(W*D*H) mm 975x218x308
Packing   (W*D*H) mm 1035x295x385
Net/Gross weight   kg 10.2/13.3
Outdoor fan motor Model    ZKFN-80-10-1L
Speed         r/min 700/530
Outdoor coil a.Number of rows   1.6
b.Tube pitch(a)x row pitch(b)   mm 18x17.3
c.Fin spacing                 mm 1.3
d.Fin type (code)   Hydrophilic aluminum
e.Tube outside dia.and type  mm Φ5,Inner groove tube
f.Coil length x height x width   mm 900*612*17.3+540*612*17.3
g.Number of circuits   8
Outdoor air flow             m3/h 3500
Outdoor sound pressure level dB(A) 57
Outdoor sound power level         dB(A) 65
Outdoor unit Dimension(W*D*H) mm 890x342x673
Packing  (W*D*H) mm 995x398x740
Net/Gross weight   kg 37.8/41.0
Refrigerant           Type    R32
GWP   675
Charged quantity kg 0.85
Design pressure              MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side   mm(inch) 6.35mm(1/4in)/12.7mm(1/2in)
Max. refrigerant pipe length    m 30
Max. difference in level        m 20
Connection wiring       1.5x5//
Plug type   //no-plug
Thermostat type   Remote Control
Room  temperature Indoor(cooling/ heating) ℃ 16～32/0～30
Outdoor(cooling/heating) ℃ -15～50/-25～24
Application area   (Cooling Standard) m2 23～33
Qty’per 20’ /40’ /40'HQ        70/149/165
