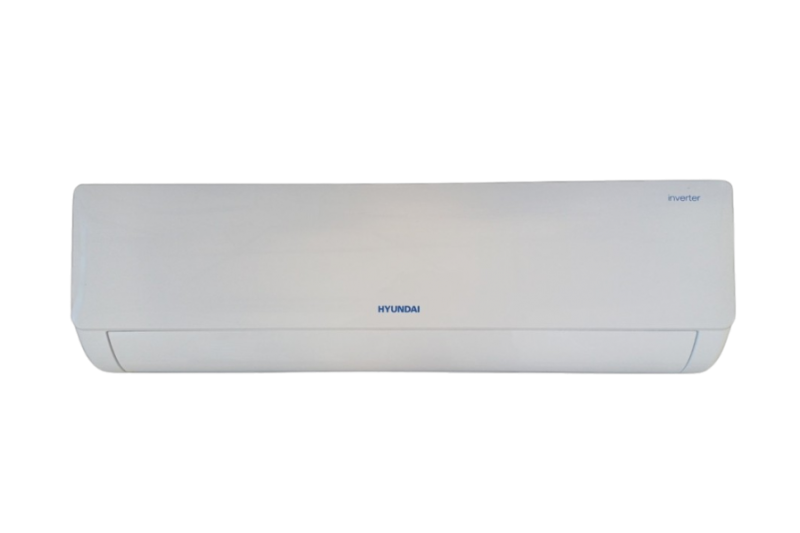

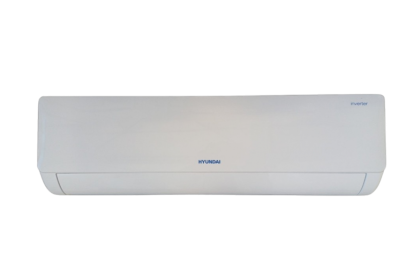

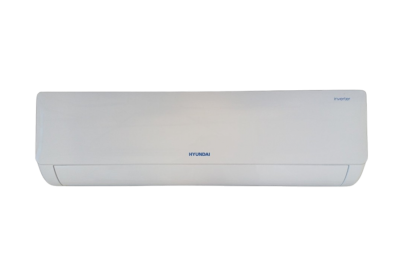

Климатик HYUNDAI HYUBG Pro-09HRFN8-QRD1GW

Model HYUBGPro-09HRFN8 -QRD1GW
Power supply V-Ph-Hz 220-240V,1Ph,50Hz
Cooling (Standard conditions) Capacity                      Btu/h 9000 (3500~12000)
Capacity                      kW 2.6 (1.0~3.5)
Input            W 628 (80~1300)
Current    A 4.4 (0.35~5.82)
EER W/W 4.20
Heating (Standard conditions) Capacity         Btu/h 10000(2800~12500)
Capacity                      kW 2.9 (0.8~3.7)
Input            W 666(70~1075)
Current    A 4.45(0.32~4.76)
COP W/W 4.40
Seasonal Cooling Pdesignc kW 2.6
SEER W/W 8.8
Energy Efficiency Class   A+++
Heating(Average ) Pdesignh kW 2,5
SCOP W/W 4.6
Energy Efficiency Class   A++
Tbiv ℃ -7
Heating(Warmer ) Pdesignh kW 2.6
SCOP W/W 6.0
Energy Efficiency Class   A+++
Tbiv ℃ 2
Tol ℃ -15
Rated Power Input        W 2200
Rated Current                A 10
Compressor Model    KSN103D42UEZ31
Type    ROTARY
Brand    GMCC
Capacity      W 3220
Input           W 813
Rated current(RLA)  A 4,9
Refrigerant oil/oil charge   ml ESTER OIL VG74 / 280
Indoor fan motor Model    ZKFP-30-8-357L
Speed(Hi/Mi/Lo) r/min 1050/930//870
Indoor coil a.Number of rows   2
b.Tube pitch(a)x row pitch(b)   mm 19.5x11.6
c.Fin spacing                 mm 1.3
d.Fin type (code)   Hydrophilic aluminum
e.Tube outside dia.and type  mm Φ5,Inner groove tube
f.Coil length x height x width   mm 530x195x23.2+530x97.5x23.2
g.Number of circuits   3
Indoor air flow (Turbo/Hi/Mi/Lo/Si) m3/h 650/510/360/285/150
Indoor noise level (Hi/Mi/Lo/Si) dB(A) 39/34/25/19.0
Indoor sound power level dB(A) 56
Indoor unit Dimension(W*D*H) mm 723x199x286
Packing   (W*D*H) mm 780x270x365
Net/Gross weight   kg 7.5/9.6
Outdoor fan motor Model    ZKFN-25-10-6L
Speed         r/min 800/600
Outdoor coil a.Number of rows   1
b.Tube pitch(a)x row pitch(b)   mm 18x17.3
c.Fin spacing                 mm 1.3
d.Fin type (code)   Hydrophilic aluminum
e.Tube outside dia.and type  mm Φ5,Inner groove tube
f.Coil length x height x width   mm 745x504x17.3
g.Number of circuits   3
Outdoor air flow             m3/h 2200
Outdoor sound pressure level dB(A) 54.0
Outdoor sound power level         dB(A) 62
Outdoor unit Dimension(W*D*H) mm 765x303x555
Packing  (W*D*H) mm 887x337x610
Net/Gross weight   kg 23.1/25.4
Refrigerant           Type    R32
GWP   675
Charged quantity kg 0.55
Design pressure              MPa 4.3/1.7
Refrigerant piping Liquid side/ Gas side   mm(inch) 6.35mm(1/4in)/9.52mm(3/8in)
Max. refrigerant pipe length    m 25
Max. difference in level        m 10
Connection wiring       1.5x5//
Plug type   //no-plug
Thermostat type   Remote Control
Room  temperature Indoor(cooling/ heating) ℃ 16～32/0～30
Outdoor(cooling/heating) ℃ -15～50/-25～24
Application area   (Cooling Standard) m2 12～18
Qty’per 20’ /40’ /40'HQ        110/230/264
