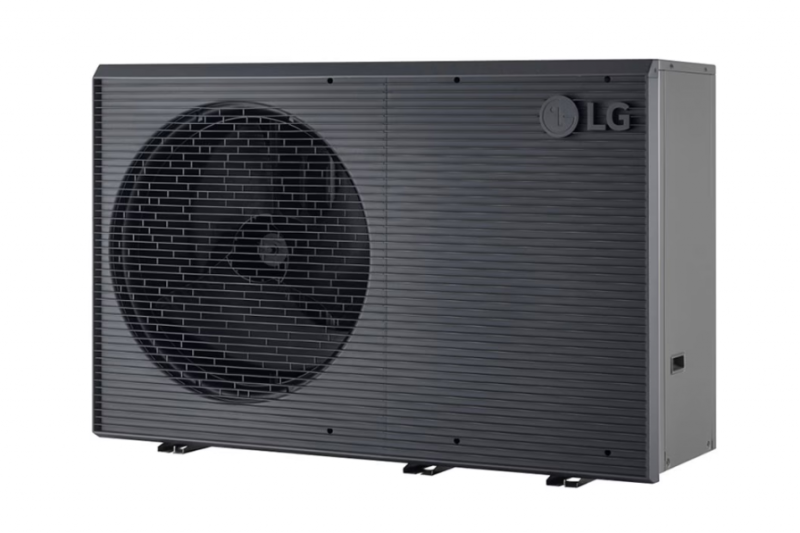

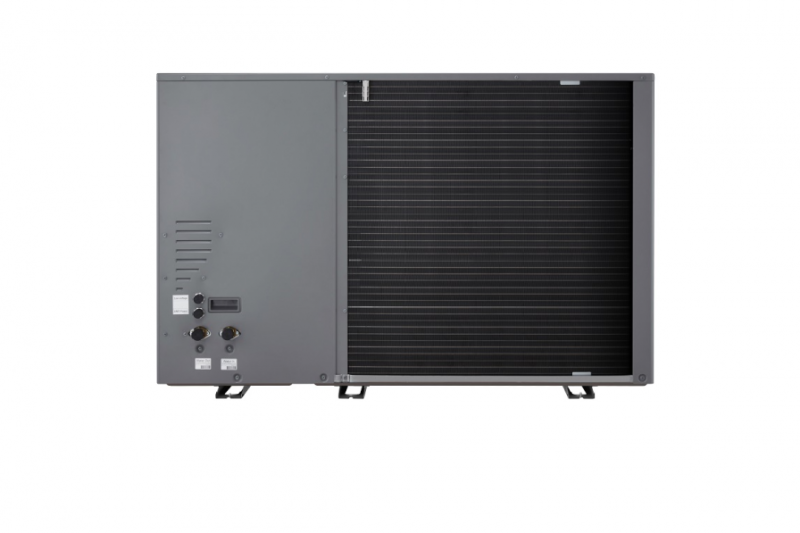

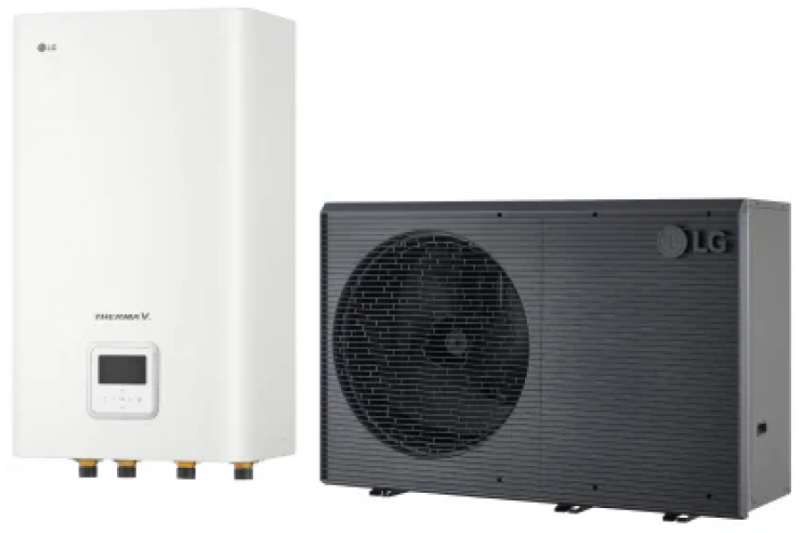

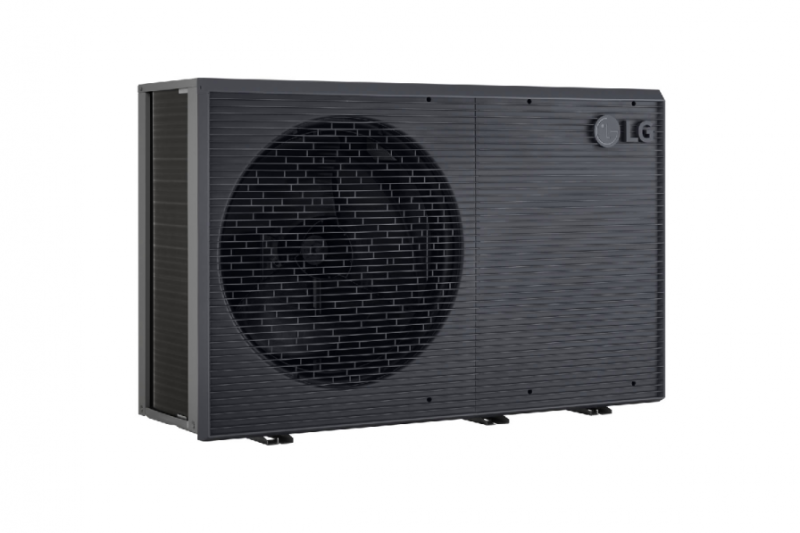

HM163HF.UB60 / HN1639HC.NK0 LG THERMA V Monobloc 3Ф
Цена:
€9,500.00
18580.38 лв.
-
Код:16575
-
Тегло:180.000 кг
5 години пълна гаранция
- Използва новият екологичен фреон R290.
- Black Fin покритие на топлообменника.
- Wi-Fi решение на LG(Smart ТhinQ)
- Температура на изходяща вода до 75°С
- Трифазно тяло (3Ф)
- Хидро бокс (3Ф)
ВАЖНО! В ЦЕНАТА Е ВКЛЮЧЕН ХИДРО БОКС!
Възможност за добавяне на допълнителни аксесоари:
- Wi-Fi модем PWFMDD200 - дава възможност за управляване на машината чрез мобилно устройство.
Бърза поръчка
Само попълнете 2 полета
| Efficiency Data | Unit | 16 kW | |
| Seasonal space heating eff.class ( 35°C / 55°C ) | - | A+++ / A+++ | |
| Seasonal space heating efficiency ( 35°C / 55°C ) | % | 201 / 154 | |
| SCOP ( 35°C / 55°C ) | - | 5.11 / 3.92 | |
| Water heating efficiency ( profile L ) | % | 130 | |
| Nominal Capacity and COP / EER | Unit | ||
| Air + 7°C / Water + 35°C | Heating capacity / COP | kW / - | 16.00 / 4.30 |
| Air + 2°C / Water + 35°C | Heating capacity / COP | kW / - | 14.50 / 3.49 |
| Air - 7°C / Water + 35°C | Heating capacity / COP | kW / - | 13.80 / 3.17 |
| Air + 7°C / Water + 55°C | Heating capacity / COP | kW / - | 12.00 / 3.30 |
| Air - 7°C / Water + 55°C | Heating capacity / COP | kW / - | 10.90 / 2.26 |
| Air + 35°C / Water + 18°C | Heating capacity / EER | kW / - | 12.50 / 3.70 |
| Air + 35°C / Water + 7°C | Heating capacity / EER | kW / - | 12.50 / 2.95 |
| Outdoor Unit | HM163HF.UB60 | ||
| Operation range (outdoor air temperature) |
Heating & DHW ( Min. - Max. ) | °C | - 28 ~ 35 |
| Cooling ( Min. - Max. ) | °C | 5 ~ 48 | |
| Refrigerent | Type | - | R290 |
| GWP | - | 3 | |
| Precharged amount | g | 1,200 | |
| t-CO2 eq. | - | 0.0036 | |
| Piping connections ( water ) | Inlet / outler diameter | inch | Male PT 1'' according to ISO 7-1 ( tapered pipe threads ) |
| Dimension | W x H x D | mm | 1,560 x 1,019 x 520 |
| Weight | Empty | kg | 181.0 |
| Exterior | Color of chassis / RAL code | - | Dawn gray / RAL 7037 |
| Color of front grille / RAL code | - | Dark dawn gray / RAL 7012 | |
| Power supply | Voltage, phase, frequency | V, Ø, Hz | 380 - 415 , 3, 50 |
| Recommended circuit breaker | А | 3 Ø; 16 | |
| Sound power level | Rated / Low noise mode | db(A) | 49 / 48 |
| Sound pressure level at 5 m | Rated / Low noise mode | db(A) | 27 / 26 |
| Hydro Unit | Unit | HN1639HC.NK0 | |
| Operation range (leaving water temperature) |
Heating ( Min. - Max. ) | °C | 15 ~ 75 |
| Cooling ( Min. - Max. ) | °C | 5 ~ 27 | |
| DHW ( Min. - Max. ) | °C | 15 ~ 80 | |
| Backup heater | Capacity combination | kW | 3.0 + 3.0 + 3.0 |
| Power supply | V, Ø, Hz | 380 - 415, 3, 50 | |
| Rated running currect | A | 13 | |
| Piping connections ( water ) | Heating circult outlet pipe | inch | Male PT 1'' according to ISO 7-1 ( tapered pipe threads ) |
| Heating circult inlet pipe | inch | ||
| Outlet pipe to outdoor unit | inch | ||
| Inlet pipe to outdoor unit | inch | ||
| Dimension | W x H x D | mm | 490 x 850 x 315 |
| Weight | Empty | kg | 3 Ø; 31.0 |
| Exterior | Color / RAL code | - | Noble white / RAL 9016 |
| Power supply | Voltage, phase, frequency | V, Ø, Hz | 380 - 415, 3, 50 |
| Recommended circuit breaker | A | 10 | |
| Sound power level | Rated | db(A) | 39 |
| Sound pressure level at 1 m | Rated | db(A) | 31 |
