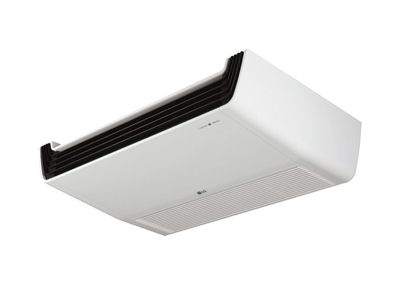

UV30F.N10 / UUC1.U40 1Ф Ceiling suspended unit / Тяло за открит таванен монтаж
Цена:
4,700.00 лв.
€2403.07
-
Код:16519
-
Тегло:53.000 кг
- Капацитет отопление : 8.6 kW.
- Капацитет охлаждане : 7.7 kW.
- Производителност при -10°С : 5.4 kW.
- Монофазно (1Ф) външно тяло
- Монофазно (1Ф) вътрешно тяло
ВАЖНО! В комплекта има включено безжично дистанционно управление.
Бърза поръчка
Само попълнете 2 полета
| COMBINATION | ||||
| Capacity | Cooling | Min. / Rated / Max. | kW | 3.1 / 7.7 / 8.8 |
| Heating | 3.4 / 8.6 / 9.6 | |||
| Power Input (Set) | Cooling | Min. / Rated / Max. | kW | 0.50 / 2.25 / 3.08 |
| Heating | 0.50 / 2.5 / 3.20 | |||
| Running Current | Cooling | Rated | A | 10.0 |
| Heating | 11.1 | |||
| EER / COP | kWh / kWh | 3.42 / 3.44 | ||
| SEER / SCOP | kWh / kWh | 6.8 / 4.4 | ||
| Pdesign | Cooling @ 35°C | kW | 7.7 | |
| Heating @ -10°C | 5.4 | |||
| Seasonal Energy Label | Cooling / Heating | - | A++ / A+ | |
| Annual Energy Consumption | Cooling / Heating | kWh | 396 / 1,718 | |
| Dehumidification Rate | l/h | 3.0 | ||
| ODU Sound Pressure Level | Cooling / Heating | Rated | dB(A) | 50 / 52 |
| ODU Sound Power Level | Cooling | Rated | dB(A) | 68 |
| Piping Connections | Liquid | mm (inch) | ø 9.52(3/8) | |
| Gas | mm (inch) | ø 15.88 (5/8) | ||
| Connections Method | - | Flared | ||
| Operation Range (Outdoor) | Cooling | Min. / Max. | °C | - 20 / 50 |
| Heating | - 20 / 18 | |||
| INDOOR | UV30F.N10 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Power Input (IDU) | H / M / L | W | 47 / 40 / 33 | |
| Air Flow Rate | H / M / L | m3/min | 19 / 17.5 / 16 | |
| Dimensions | Body | W x H x D | mm | 1,200 / 235 / 690 |
| Weight | Body | kg | 28 | |
| Sound Pressure Level | Cooling | H / M / L | dB(A) | 46 / 44 / 43 |
| Sound Power Level | Cooling | Max. | dB(A) | 62 |
| Piping Connections | Drain (Natural Drainage) | O.D / I.D | mm | ø 25.0 / 20.5 |
| Drain (Using Drain Pump) | ø 32.0 / 26.0 | |||
| OUTDOOR | UUC1.U40 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Circuit Breaker | Min. | A | 25 | |
| Power Supply Cable (Included Eart) | No x mm3 | 3C x 2.5 | ||
| Dimensios | Net | W x H x D | mm | 950 / 834 / 330 |
| Weight | Net | kg | 57.7 | |
| Compressor | Type | - | Twin Rotary | |
| Refrigerant | Type | - | R32 | |
| Fan | Air Flow Rate | Rated | m3/min x No | 58 x 1 |
| Total Piping Lenght | Min. / Max. | m | 5 / 50 | |
| Piping Elevation | IDU - ODU | Max. | m | 30 |
