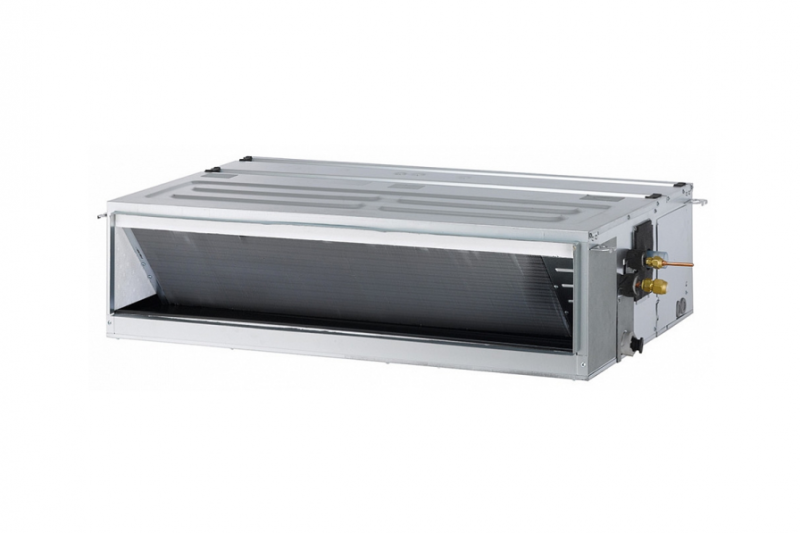

UM36F.N20 / UUD1.U30 1Ф Ceiling consealed duct mid static pressure / Скрит таванен монтаж / Среднонапорно
Цена:
6,700.00 лв.
-
Код:16507
-
Тегло:120.000 кг
- Капацитет отопление : 10.8 kW.
- Капацитет охлаждане : 9.5 kW.
- Производителност при -10°С : 9.5 kW.
- Монофазно (1Ф) вътрешно тяло
- Монофазно (1Ф) външно тяло
ВАЖНО! Необходимо е да се закупи дистанционно управление, което не е включено в цената.
Бърза поръчка
Само попълнете 2 полета
| COMBINATION | ||||
| Capacity | Cooling | Min. / Rated / Max. | kW | 3.8 / 9.5 / 12.5 |
| Heating | 4.3 / 10.8 / 13.4 | |||
| Power Input (Set) | Cooling | Min. / Rated / Max. | kW | 0.50 / 2.50 / 3.80 |
| Heating | 0.60 / 2.77 / 3.77 | |||
| Running Current | Cooling | Rated | A | 11.1 |
| Heating | 12.6 | |||
| EER / COP | kWh / kWh | 3.80 / 3.90 | ||
| SEER / SCOP | kWh / kWh | 5.80 / 3.90 | ||
| Pdesign | Cooling @ 35°C | kW | 9.5 | |
| Heating @ -10°C | 9.5 | |||
| Seasonal Energy Label | Cooling / Heating | - | A+ / A | |
| Annual Energy Consumption | Cooling / Heating | kWh | 573 / 3,410 | |
| Dehumidification Rate | l/h | 2.9 | ||
| ODU Sound Pressure Level | Cooling / Heating | Rated | dB(A) | 50 / 50 |
| ODU Sound Power Level | Cooling | Rated | dB(A) | 66 |
| Piping Connections | Liquid | mm (inch) | ø 9.52 (3/8) | |
| Gas | mm (inch) | ø 15.88 (5/8) | ||
| Connections Method | - | Flared | ||
| Operation Range (Outdoor) | Cooling | Min. / Max. | °C | - 20 / 52 |
| Heating | - 25 / 18 | |||
| INDOOR | UM36F.N20 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Power Input (IDU) | H / M / L | W | 183 / 134 / 101 | |
| Air Flow Rate | H / M / L | m3/min | 32 / 28 / 24 | |
| Dimensions | Body | W x H x D | mm | 1,250 / 270 / 700 |
| Weight | Body | kg | 38.5 | |
| Sound Pressure Level | Cooling | H / M / L | dB(A) | 36 / 34 / 33 |
| Sound Power Level | Cooling | Max. | dB(A) | 60 |
| Piping Connections | Drain (Natural Drainage) | O.D / I.D | mm | ø 25.4 / 19.4 |
| Drain (Using Drain Pump) | ø 32.0 / 26.0 | |||
| OUTDOOR | UUD1.U30 | |||
| Power Supply | ø / V / Hz | 1 / 220-240 / 50 | ||
| Circuit Breaker | Min. | A | 40 | |
| Power Supply Cable (Included Eart) | No x mm3 | 3C x 6.0 | ||
| Dimensios | Net | W x H x D | mm | 950 / 1,380 / 330 |
| Weight | Net | kg | 85 | |
| Compressor | Type | - | Inverter Scroll | |
| Refrigerant | Type | - | R32 | |
| Fan | Air Flow Rate | Rated | m3/min x No | 55 x 2 |
| Total Piping Lenght | Min. / Max. | m | 5 / 85 | |
| Piping Elevation | IDU - ODU | Max. | m | 30 |
