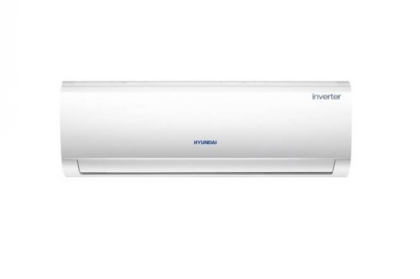

HYUBG-09HRDN8-QRD0GW Климатик HYUNDAI AURORA
Цена:
990.00 лв.
-
Код:16593
-
Тегло:40.000 кг
2 години пълна гаранция
ОСНОВНИ ХАРАКТЕРИСТИКИ:
- Хладилен агент R32
- Енергийна ефективност: А+++/А++
- Wi-Fi
- Режим за бързо охлаждане
- Режим за бързо отопление
- Ниски нива на шум
- ЛЕСНО И БЪРЗО МОНТИРАНЕ
Бърза поръчка
Само попълнете 2 полета
| Model | HYUBG-09HRDN8-QRD0GW-09kBTU | ||
| Power supply | Ph-V-Hz | 220-240V,1Ph,50Hz | |
| Rated Cooling | Capacity | Btu/h | 9000（3500~11000) |
| Cooling Power input | W | 613（90~1140) | |
| Cooling Current | A | 2.66（0.4~4.7) | |
| Rated Heating | Capacity | Btu/h | 10000（2800~11500) |
| Heating Power input | W | 637（110~1080) | |
| Heating Current | A | 2.77（0.48~4.7) | |
| Seasonal Cooling | Pdesignc | kW | 2.6 |
| SEER | W/W | 9.30 | |
| Energy Efficiency Class | A+++ | ||
| Heating (Average) | Pdesignh | kW | 2.4 |
| SCOP | W/W | 4.60 | |
| Energy Efficiency Class | A++ | ||
| Tbiv | ℃ | -7 | |
| Tol | ℃ | -15 | |
| Moisture Removal | L/h | / | |
| Max. input consumption | W | 2200 | |
| Max. current | A | 10.5 | |
| Starting current | A | / | |
| Compressor | Model | KSN98D64UFZ3 | |
| Type | ROTARY | ||
| Brand | GMCC | ||
| Capacity | W | / | |
| Input | W | / | |
| Rated current(RLA) | A | / | |
| Locked rotor Amp(LRA) | A | / | |
| Thermal protector | / | ||
| Thermal protector position | / | ||
| Capacitor | μF | / | |
| Refrigerant oil/oil charge | ml | VG74/300ml | |
| Indoor fan motor | Model | ZKFP-20-8-6-7 | |
| Old Model | / | ||
| Input | W | 50.0 | |
| Capacitor | uF | 0 | |
| Speed(Hi/Mi/Lo) | r/min | 1000/800/700 | |
| Indoor coil | Number of rows | 2 | |
| Tube pitch(a)x row pitch(b) | mm | 21x13.37 | |
| Fin spacing | mm | 1.3 | |
| Fin type (code) | Hydrophilic aluminum | ||
| Tube outside dia.and type | mm | Φ7,Inner groove tube | |
| Coil length x height x width | mm | 605x210x26.74+605x84x26.74 | |
| Number of circuits | 2 | ||
| Indoor air flow (Hi/Mi/Lo) | m3/h | 483/362/303 | |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 36.5/29.0/24.0 | |
| Indoor sound power level | dB(A) | 55 | |
| Indoor unit | Dimension(W*D*H) | mm | 802x189x297 |
| Packing (W*D*H) | mm | 875x285x380 | |
| Net/Gross weight | Kg | 8.6/11.1 | |
| Outdoor fan motor | Model | ZKFN-34-10-1 | |
| Input | W | 34,0 | |
| Capacitor | uF | / | |
| Speed | r/min | 780/450 | |
| Outdoor coil | Number of rows | 1 | |
| Tube pitch(a)x row pitch(b) | mm | 21x22 | |
| Fin spacing | mm | 1.3 | |
| Fin type (code) | Hydrophilic aluminum | ||
| Tube outside dia.and type | mm | Ф7,Inner groove tube | |
| Coil length x height x width | mm | 745*504*22 | |
| Number of circuits | 2 | ||
| Outdoor air flow | m3/h | 2150 | |
| Outdoor sound pressure level | dB(A) | 54.0 | |
| Outdoor sound power level | dB(A) | 60 | |
| Outdoor unit | Dimension(W*D*H) | mm | 765x303x555 |
| Packing (W*D*H) | mm | 887x337x610 | |
| Net/Gross weight | Kg | 26.7/29.1 | |
| Refrigerant | Type | R32 | |
| GWP | 675 | ||
| Charged quantity | Kg | 0.62 | |
| Design pressure | MPa | 4.3/1.7 | |
| Refrigerant piping | Liquid side/ Gas side | mm(inch) | 6.35mm(1/4in)/9.52mm(3/8in) |
| Max. refrigerant pipe length | m | 25 | |
| Max. difference in level | m | 10 | |
| Connection wiring | 1.5x5// | ||
| Plug type | //no-plug | ||
| Thermostat type | Remote Control | ||
| Room temperature | Indoor(cooling/ heating) | ℃ | 17～32/0～30 |
| Outdoor(cooling/heating) | ℃ | -15～50/-15～24 | |
| Application area (Cooling Standard) | m2 | 12～18 | |
